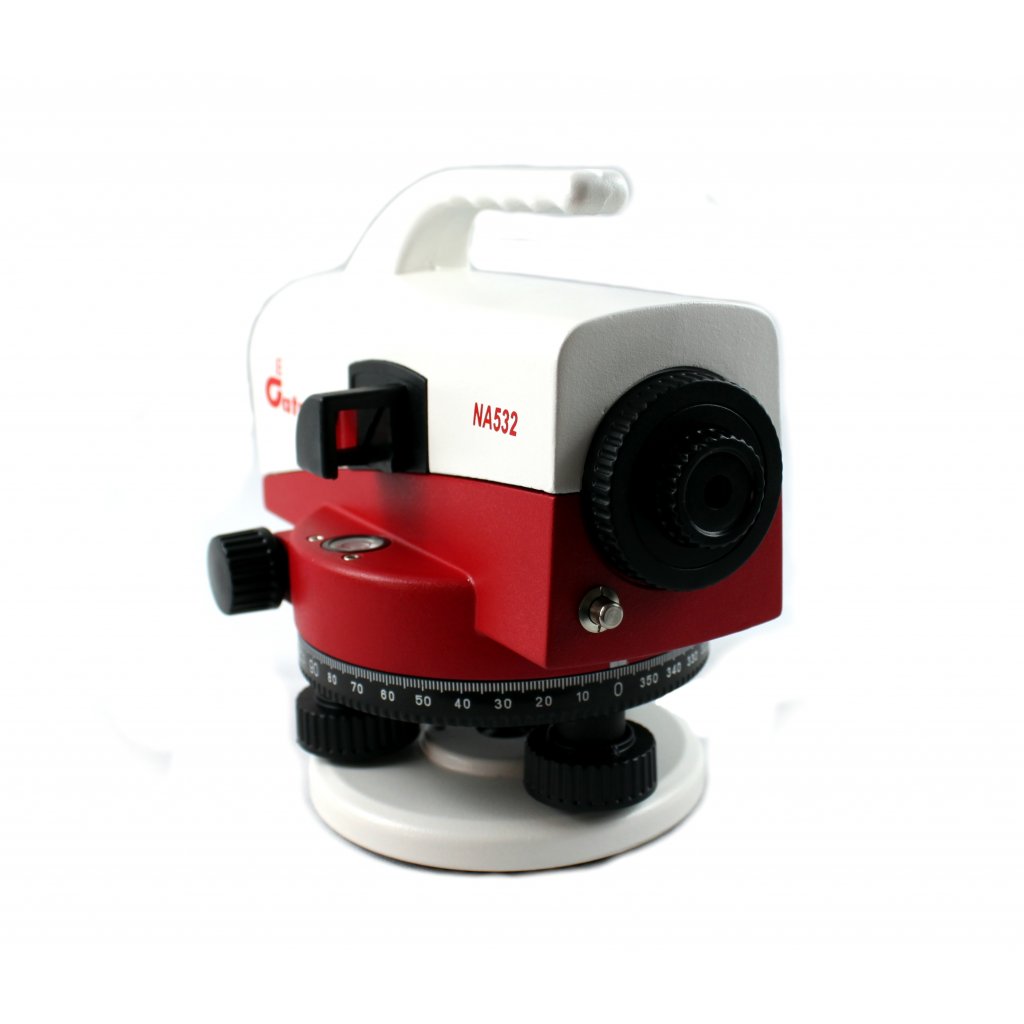

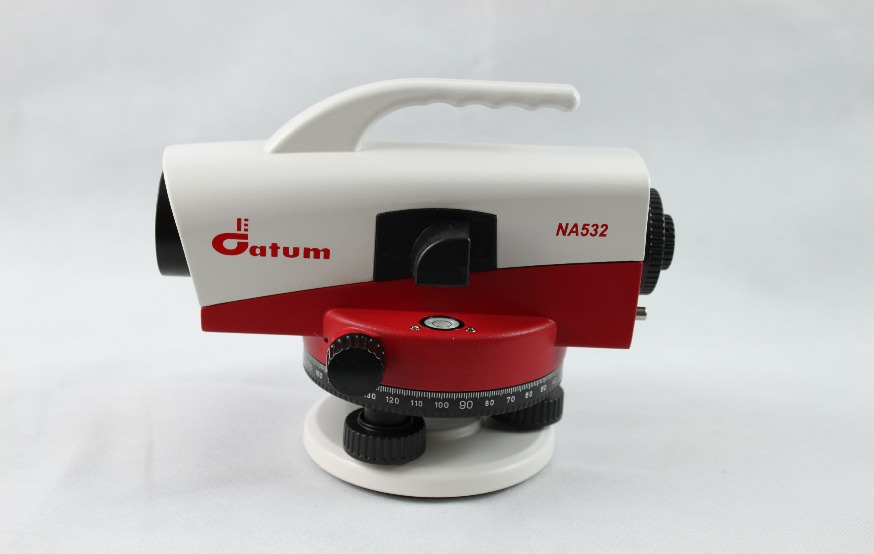

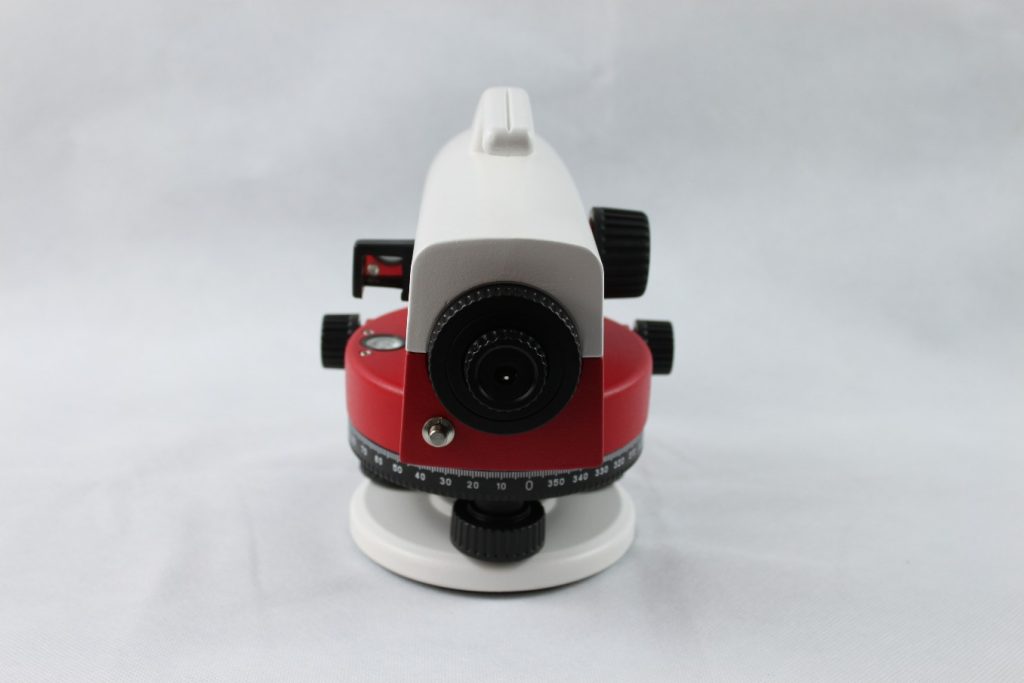

With it’s robust metal casing, the Datum NA532 Automatic Level is built for site use offering high quality at an inexpensive price.
With an accuracy rating of ±1mm per double km run and the impressive 32x magnification and this Datum level is perfect for nearly all levelling applications.
The built in 360º Horizontal Circle helps you turn out angles and the built in compensator check button assures you that all is functioning correctly.
NA532 First owner only – Product registration required.
| SPECIFICATIONS | NA532 |
| Magnification | 32X |
| Std Deviation (1km double run) | ±1.0mm |
| Telescope Image | Erect |
| Objective Aperture | 40mm |
| Field of View | 1º 20′ |
| Minimum Focus | 0.65m |
| Multiplication Constant | 100 |
| Compensator Working Range | ±15′ |
| Instrument Weight | Approx 1.6kg |
| Warranty* | LIFETIME |
