Intensify your performance and get error-free results at the best price-to-performance ratio.

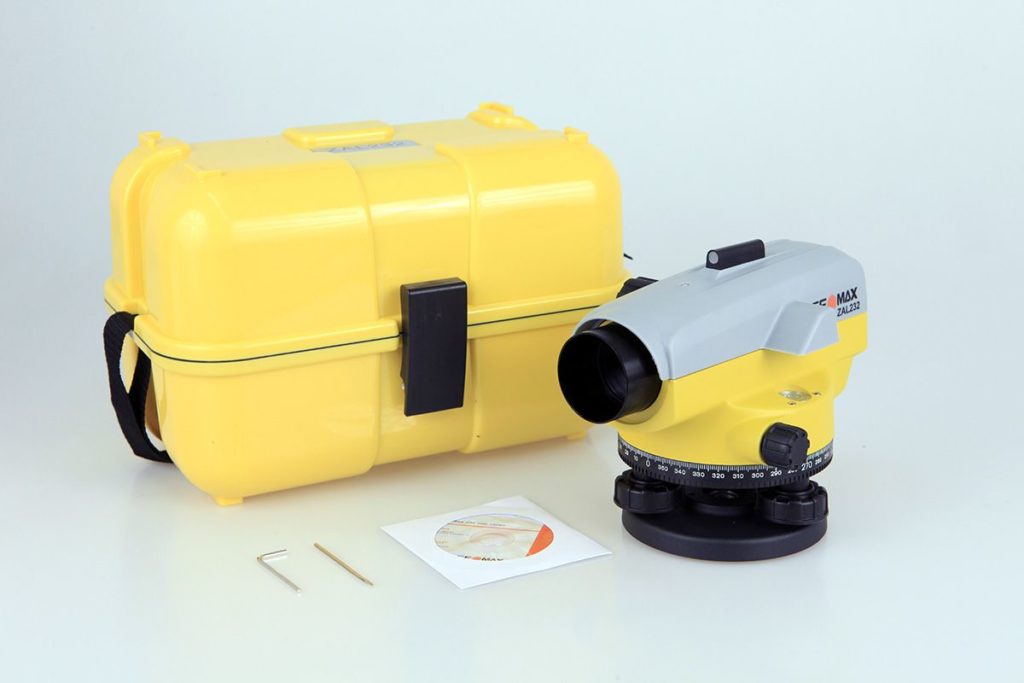

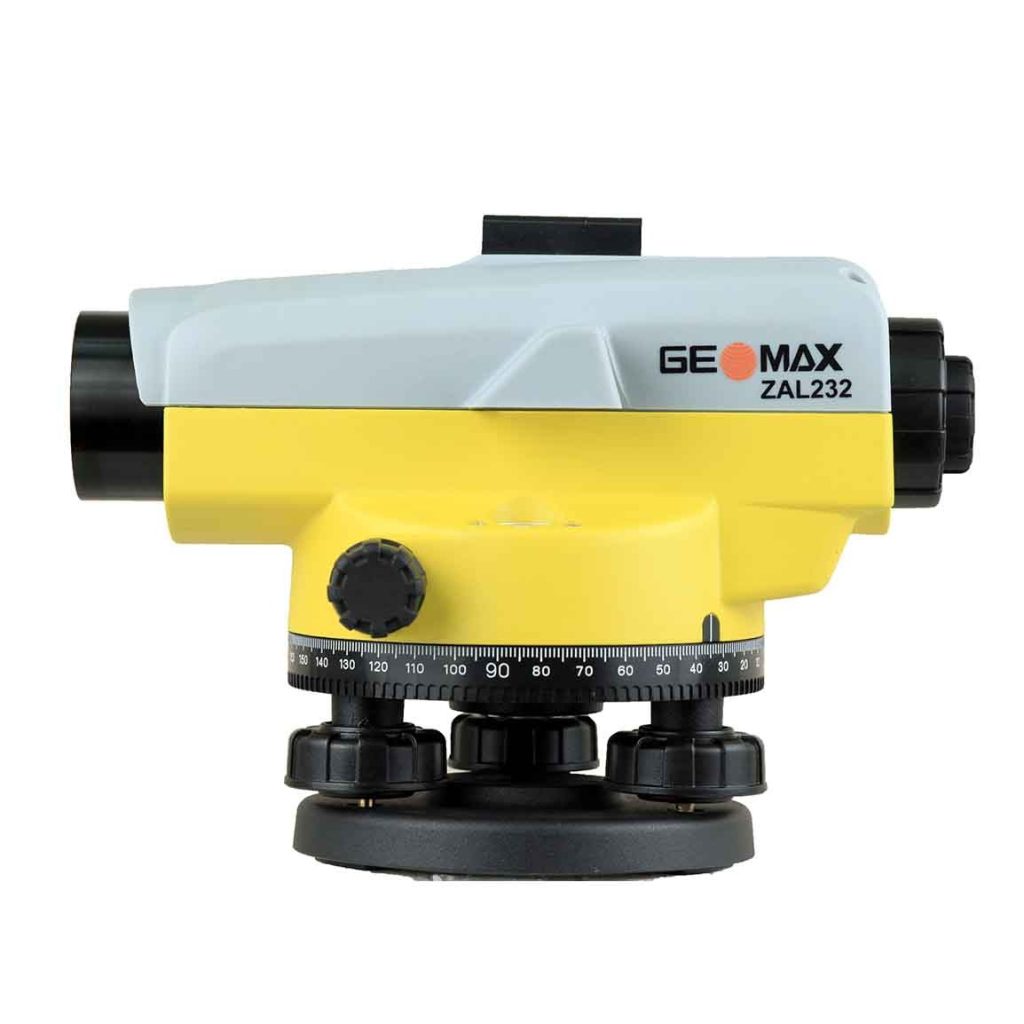

The new GeoMax ZAL200 series are dependable and durable tools specifically designed for construction professionals.
With three different types of magnification, a new ergonomic and solid-built design, and full range of accessories and services, the GeoMax automatic levels provide the great quality at affordable value.
| ZAL220 | ZAL224 | ZAL232 | |
| ACCURACY* | 2.5 mm | 2.0 mm | 1.9 mm |
| TELESCOPE | |||
| Image | Erect | Erect | Erect |
| Magnification | 20 x | 24 x | 32 x |
| Field of view | < 2.1 m at 100 m | < 2.1 m at 100 m | < 2.1 m at 100 m |
| Shortest target distance from instrument axis | < 1.0 m | < 1.0 m | < 1.0 m |
| COMPENSATOR | |||
| Working range | ± 15’ | ||
| Setting accuracy** | 0.5’’ | ||
| DISTANCE MEASUREMENT | |||
| Multiplication factor | 100 | ||
| Additive constant | 0 | ||
| CIRCULAR LEVEL | |||
| Sensitivity | 8’/2 mm | ||
| CIRCLE | |||
| Graduation | 360° | ||
| Graduation interval | 1° | ||
| ADAPTATION | |||
| Central fixing screw*** | 5/8” | ||
| ENVIRONMENTAL | |||
| Operating temperature | -20°C to +50°C (-4°F to +122°F) | ||
| Protection | IP56 | ||
