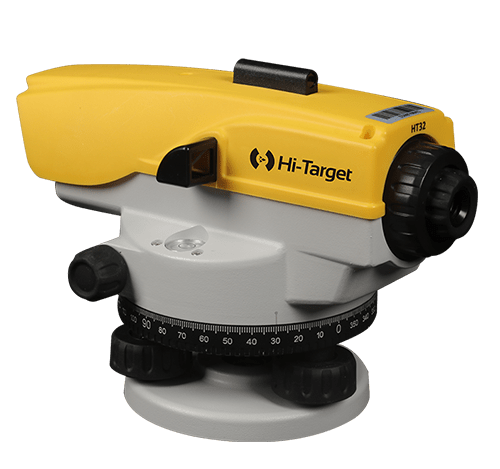

hi-target 32-Automatic Level

OVERVIEW
Featuring a lightweight and easy-to-grasp compact design, the HT-32 is an air damping compensator auto level that provides durability and flexibility for your surveying needs. Even when fine vibrations are present, rest assured that this
equipment provides accurate and precise results.
The HT-32 has an eco-friendly frame that is reinforced with IP66 protection to endure harsh weather conditions.

SPECIFICATIONS

Standard deviation for 1 km double levelling		1.0mm
Telescope	Magnification	32X
	Filed of View	1°20′
	Objective Aperture	38mm
	Minimum Focusing Distance	1m
	Stadia	100
Compensator	Type	X-style Air Dumping
	Compensating Range	±15’
	Setting Accuracy	±0.5”
Environmental conditions	Operating Temperature	-20°C ~+50°C
	Storage Temperature	-40°C ~+70°C
	Protection Level	IP66
	Net Weight	1.4KG
