When you are out in the field, you need a fast and versatile instrument. Leica Nova MS60 is the world’s first MultiStation, helping you perform all required surveying tasks with just one instrument. The MS60 can be used as a total station without any compromise and offers the option to scan with a speed of up 30,000 points per second. Benefit from digital imaging and GNSS connectivity. Master your projects by performing point cloud analysis directly in the field – such as flatness analysis or as-built checks in the Inspect Surface app – and by automatically measuring your instrument height with the AutoHeight feature. Seamlessly transfer your data with Leica Exchange into Leica Infinity to manage, process, analyse and quality check it.
LEICA NOVA MS60 MULTISTATION: MASTER YOUR PROJECTS WITH THE ULTIMATE ALL-ROUNDER
- Surfaces and volumes in construction and mining: spoil heaps and stock piles, DTM creation and checking surfaces, material thickness, blast faces and ground levels.
- Analysis of complex structures and objects within plant, marine and utility projects: dimensional control, as-built and record keeping.
- Measuring buildings and structures: bridge condition/clearance
- analysis, BIM and as-built.
- Façade, elevations and heritage work: creation of traditional
- façade deliverables, 3D models and photographic documentation.
- Traditional topographic surveys for surveying and mapping:
- creation of traditional deliverables like 2D maps or 3D models.
- Enhanced prism monitoring with scanning: 24/7 automatic mm-level measurements of surfaces like roads, buildings, dams and tunnels with real-time messages in case of detected movements.

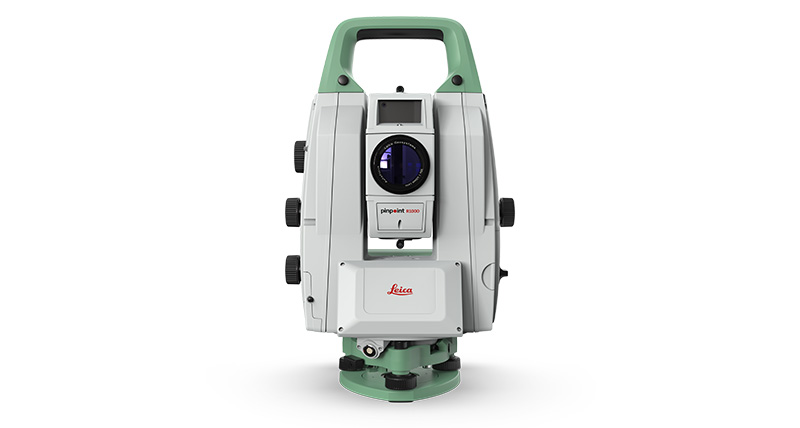

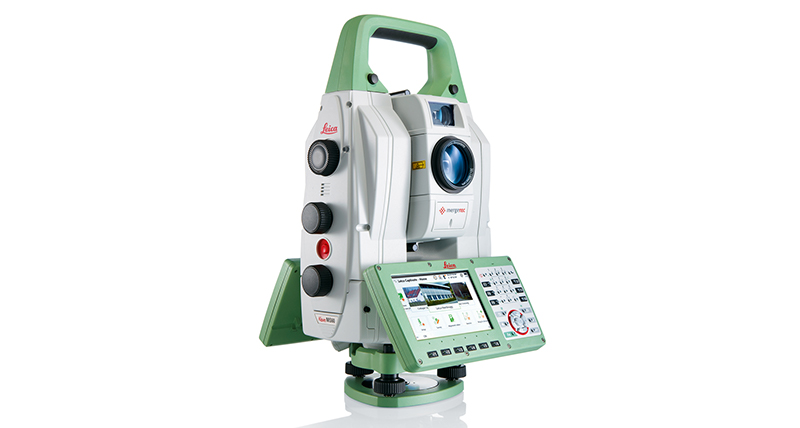

Leica Nova MS60 MultiStation
| ANGLE MEASUREMENT | ||
| Accuracy 1 Hz and V | Absolute, continuous, quadruple | 1” (0.3 mgon) |
| DISTANCE MEASUREMENT | ||
| Range 2 / Accuracy / Measurement time | Prism (GPR1, GPH1P) 2,3,5 Single (any surface) 2,4,5,6 | 1.5m to >10,000m / 1mm + 1.5ppm / typ. 1.5s 1.5m to 2,000m / 2mm + 2ppm / typ. 1.5s |
| Measurement technology | Wave Form Digitising | Coaxial, visible red laser, dot size 8mm x 20mm @ 50m |
| SCANNING | ||
| Scan Rate / Maximum Scan Speed | 30.000 Hz | 30,000 points per second |
| Max. Range 7 / Range noise (1 sigma) | 30 kHz mode n8 kHz mode n1 kHz mode n1 Hz mode | 60m / 3mm @ 50m 150m / 1.5mm @ 50m 300m / 1.0mm @ 50m 1,000m / 0.6mm @ 50m |
| Scan data | 3D point cloud including true colour, intensity and signal-to-noise data | |
| Scan duration | nFull dome scan 400gon x 155gon nBand Scan 400gon x 50gon | Resolution 50mm @ 15m, duration 12mins Resolution 12.5mm @ 50m, duration 45mins |
| IMAGING | ||
| Overview and telescope camera | Resolution / Frame rate nField of view (overview / telescope) | 5 MPx CMOS / up to 20 fps 19.4° / 1.5° |
| MOTORISATION | ||
| Direct drives based on Piezo technology | Rotation speed / Time to change face | Maximum 400 gon (360°) per s / typically 2.9s |
| AUTOMATIC AIMING – ATRplus | ||
| Target aiming range2 / Target locking range2 | nCircular prism (GPR1, GPH1P) n360° prism (GRZ4, GRZ122) | 1,500m / 1,000m 1,000m / 1,000m |
| Accuracy 1,2 / Measurement time | ATRplus angle accuracy Hz, V | 1” (0.3 mgon) / typically 2.5s |
| POWERSEARCH | ||
| Range / Search time | 360° prism (GRZ4, GRZ122) | 300m / typically 5s |
| GUIDE LIGHT (EGL) | ||
| Working range / Accuracy | 5 –150m / typically 5cm @ 100m | |
| GENERAL | ||
| Operating system / Field software | Windows EC7 / Leica Captivate and its apps, supports onsite and realtime decisions | |
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™- A9 MPCore™ | |
| Autofocus telescope | Magnification / Focus Range | 30 x / 1.7m to infinity |
| AutoHeight Module | Distance accuracy nDistance range | 1.0 mm (1 Sigma) 0.7 m to 2.7 m |
| Display and keyboard | 5“ (inch), WVGA, colour, touch, both faces | 37 keys, illumination |
| Operation | 3x endless drives, 1x Servofocus drive, 2x Autofocus keys, user-definable SmartKey | |
| Power management | Exchangeable Lithium-Ion battery | Up to 9h, internal charging capability |
| Data storage | Internal memory / Memory card | 2 GB / SD card 1 GB or 8 GB |
| Interfaces | RS232, USB, Bluetooth®, WLAN | |
| Weight | MultiStation including battery | 7.7kg |
| Environmental specifications | Working temperature range nDust & Water (IEC 60529) / Blowing rain nHumidity | –20°C to + 50°C IP65 / MIL-STD-810G, Methods 506.5 I and 507.5 95%, non-condensing |
