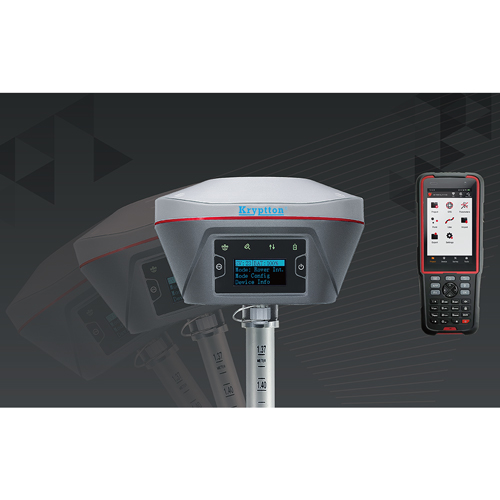

Kryptton GNSS Receiver Technical Specifications:
| Signal Tracking | |
|---|---|
| GNSS | GPS L1, L2, L5 GLONASS L1, L2 BeiDou B1, B2, B3 GALILEO E1, E5a, E5b QZSS L1, L2, L5 SBAS (EGNOS, WAAS, MSAS, GAGAN) L1C/A |
| Channels | 576 |
| Positioning | |
| Single Point Positioning Accuracy (RMS) | |
| Horizontal | 1.5m |
| Vertical | 3.0m |
| DGPS Positioning Accuracy (RMS) | |
| Horizontal | 0.4m |
| Vertical | 0.8m |
| SBAS Differential Positioning Accuracy (RMS) | |
| Horizontal | 0.6m |
| Vertical | 1.2m |
| High-Precision Static (RMS) | |
| Horizontal | 3 mm + 0.1 ppm |
| Vertical | 3.5 mm + 0.4 ppm |
| Static & Fast Static (RMS) | |
| Horizontal | 3 mm + 0.5 ppm |
| Vertical | 5 mm + 0.5 ppm |
| Real Time Kinematic (RMS) | |
| Horizontal | 8 mm + 1 ppm |
| Vertical | 15 mm + 1 ppm |
| Post Processed Kinematic (RMS) | |
| Horizontal | 8 mm + 1 ppm |
| Vertical | 15 mm + 1 ppm |
| Network Real Time Kinematic (RMS) | |
| Horizontal | 8 mm + 0.5 ppm |
| Vertical | 15 mm + 0.5 ppm |
| Observation Accuracy (zenith direction) | |
| C/A Code | 15cm |
| P Code | 20cm |
| Carrier Phase | 1mm |
| Time To First Fix (TTFF) | |
| Cold Start | <35s |
| Warm Start | <10s |
| Re-acquisition | <1s |
| Tilt Compensation Accuracy (within 30° ) | ≤2cm *Available in Ultimate Version |
| Timing Accuracy (RMS) | 20ns |
| Velocity Accuracy (RMS) | 0.03m/s |
| Initialization (Typical) | <10s |
| Initialization Reliability | >99.9% |
| System & Data | |
| Operating System | Linux |
| Storage | 8GB & 16GB internal |
| Data Format | CMR, CMR+, RTCM 2.X/3.X |
| Data output | RINEX, NMEA-0183, Binary |
| Data update rate | 20Hz |
| Electrical | |
| Input Voltage | 9~28V DC |
| Power Consumption (Typical) | |
| Network or Radio receive mode | ≈ 5W |
| Radio transmit mode (0.5W) | ≈ 8W |
| Radiotransmit mode (1W) | ≈ 9W |
| Radiotransmit mode (2W) | ≈ 11W |
| Lithium Battery | 7.4V 6400mAh x2* *Kryptton GNSS uses one battery at a time, the other is a substitute. Each battery lasts up to 8 hours when Kryptton GNSS works in 4G/3G/2G network and Rover radio mode. Two batteries add up to 16 hours of continuous use. |
| Communication | |
| Cellular | 4G LTE/TD-SCDMA/WCDMA/GPRS/GSM |
| Network protocols | Ntrip Client,Ntrip Server, Caster Service |
| WiFi | 802.11b/g |
| Bluetooth | 4.1 |
| Internal Radio | |
| RF transmit power | 0.5W/1W/2W |
| Frequency | 410MHz – 470MHz |
| Operating mode | Half-duplex |
| Channel spacing | 12.5KHz / 25KHz |
| Modulation type | GMSK, 4FSK |
| Air baud rate | 4800 / 9600 / 19200bps |
| Distance (Typical) | >5km |
| Radio protocols | TrimTalk450, TrimMark 3, South, Transparent, Satel |
| Wired communication | |
| USB OTG | USB 2.0 x1 |
| Serial ports | RS232 x1 |
| COM baud rate | up to 921600bps |
| Physical | |
| Display | 1.54’’ OLED *Available in Advance & Ultimate Version. |
| Dimension | 157x157x103mm |
| Weight | ≈ 1.2kg (without battery) ≈ 1.4kg (with a battery) |
| Operating Temperature | -40℃ ~ +75℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Relative Humidity | 100% not condensed |
| Dust & Water Proof | IP67 |
| Pole drop onto concrete | 2m |
